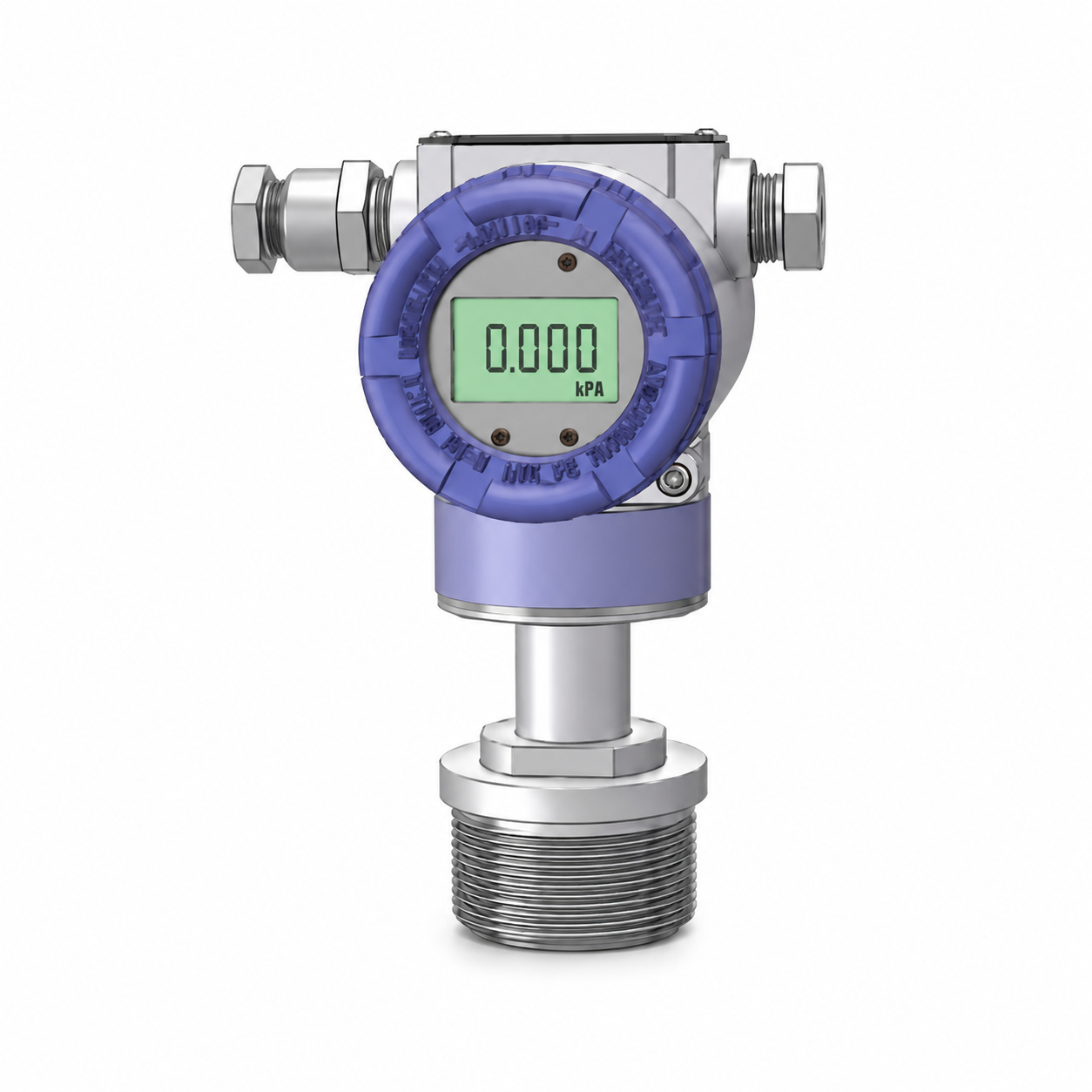

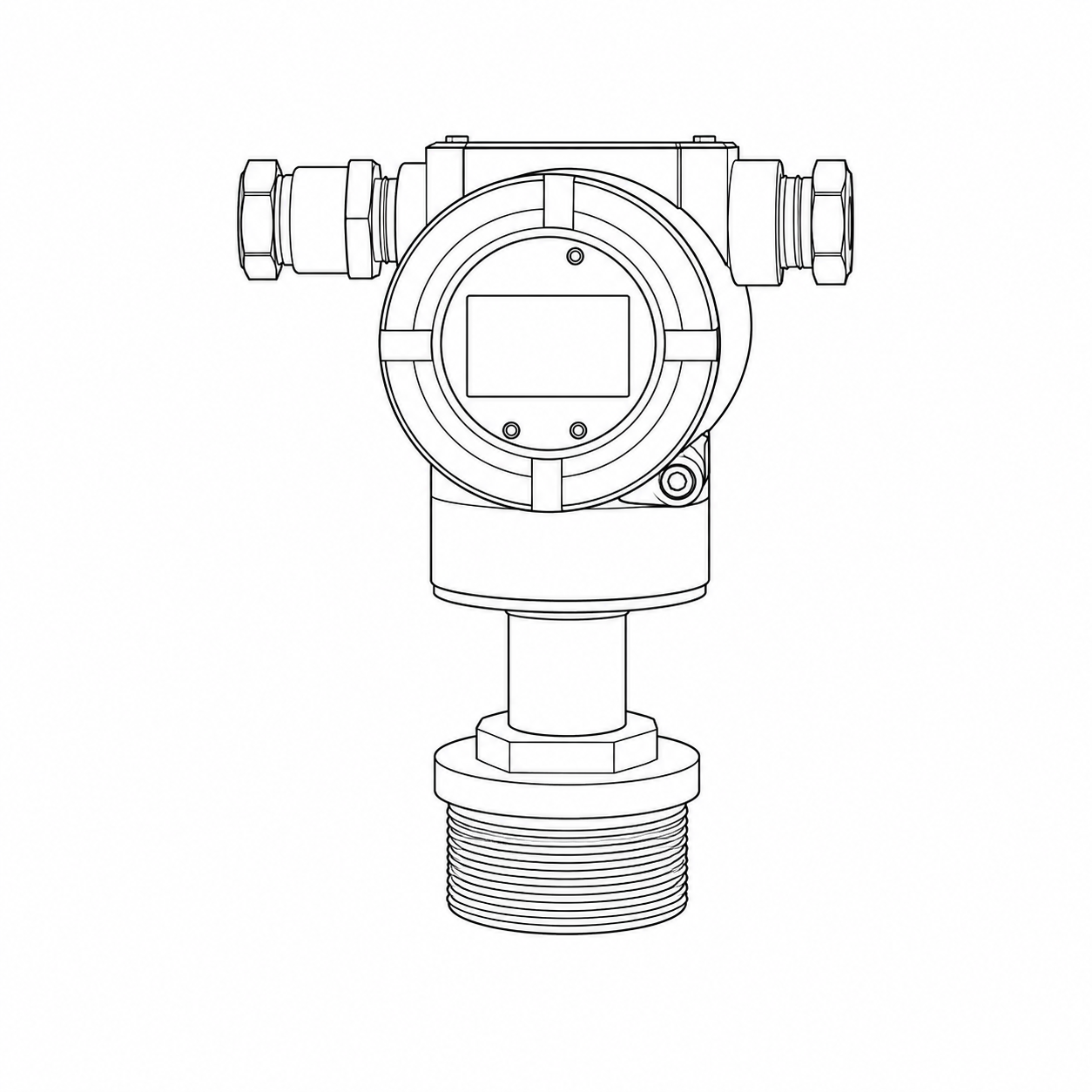

TPH3051W SCREW-MOUNT LEVEL PRESSURE SENSOR

The TPH3051W Screw-Mount Level & Pressure Transmitter provides accurate pressure and liquid-level measurement for demanding industrial process applications.

The transmitter connects directly to the process through a threaded connection and measures pressure relative to atmospheric pressure. In tank and vessel applications, the measured pressure can also be used to determine liquid level.

An isolation diaphragm separates the sensing element from the process media, helping protect the transmitter when measuring materials that are hot, highly viscous, corrosive, prone to crystallization, or contain suspended solids. The transmitter supports configurable measurement ranges, output signals, process connections, and wetted materials to match specific operating requirements.

Key Features

• Direct screw-mounted installation
• Pressure and hydrostatic level measurement
• Metal capacitive pressure-sensing technology
• Linear and temperature-compensated output
• High overload resistance
• Accuracy options up to ±0.075%
• Configurable measurement ranges
• 4–20 mA, HART, and RS485 output options
• Multiple threaded process connections
• Available 316L stainless steel or Hastelloy wetted materials
• Hazardous-area configurations available upon request
