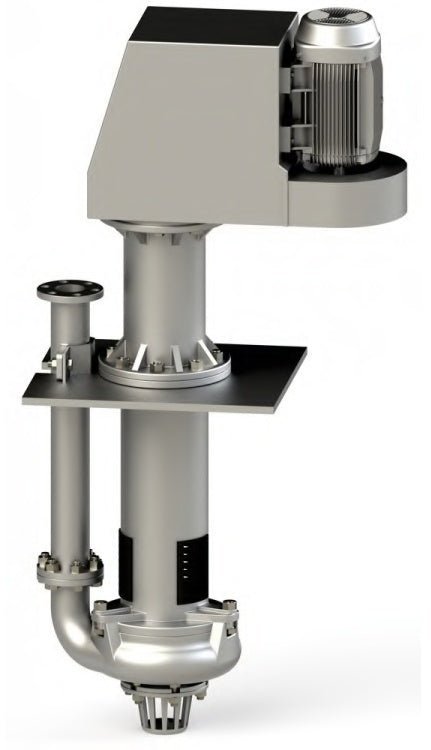

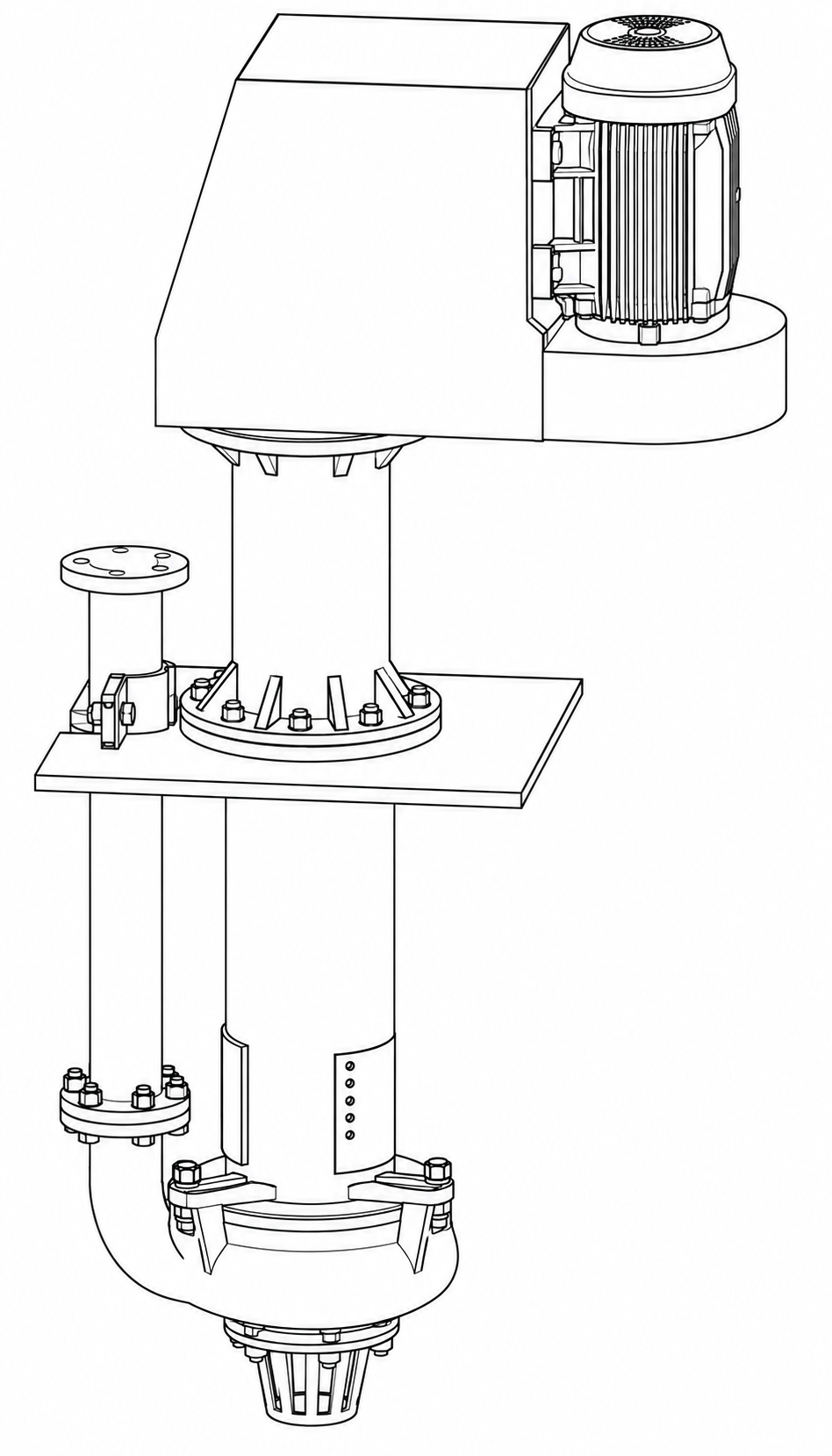

TDH V Series Vertical Cantilever Slurry Pumps

The TDH V Series Vertical Slurry Pump is a fully cantilevered, seal-free pump designed for demanding sump, drainage and slurry-handling applications.

Its heavy-duty construction includes roller bearings, heavy-walled metal casings, rubber-lined columns and rubber-lined discharge piping. A double-suction impeller allows material to enter from both the top and bottom, helping the pump handle abrasive, high-density and large-particle slurries.

Typical applications

• Continuous or “snore” operation
• Sump drainage
• Floor drainage
• Washdown
• Abrasive slurries
• High-density slurries
• Large-particle slurries
• Mixing applications

The brochure identifies these as the principal applications for the V Series.

Available configurations

• Standard impeller
• Large-particle impeller
• Standard set
• Extended set with tailpipe
• Motor shaft-up arrangement
• Motor shaft-down arrangement

These configurations are illustrated in the V Series section of the TDH product guide.

Key capabilities

• Fully cantilevered, seal-free design
• Discharge sizes from 1.5 to 10 inches
• Flow rates up to 6,000 US gallons per minute
• Maximum working pressure up to 150 PSI
• Heavy-duty construction for abrasive slurry service

Built for your application

V Series pumps are available in multiple lengths, impeller styles and installation arrangements. Submit your sump depth, flow requirements and slurry information so the Tons Per Hour team can recommend the correct configuration.
