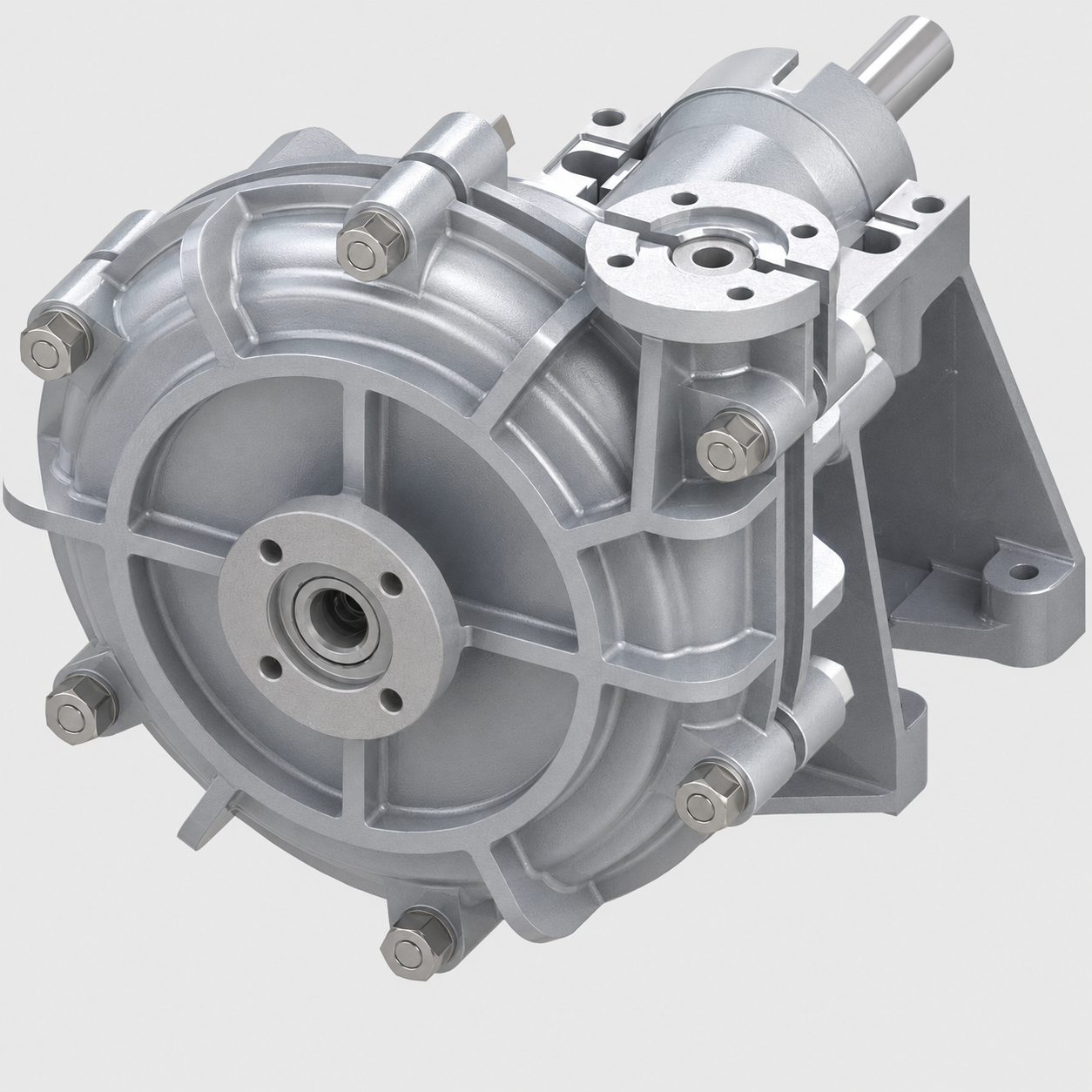

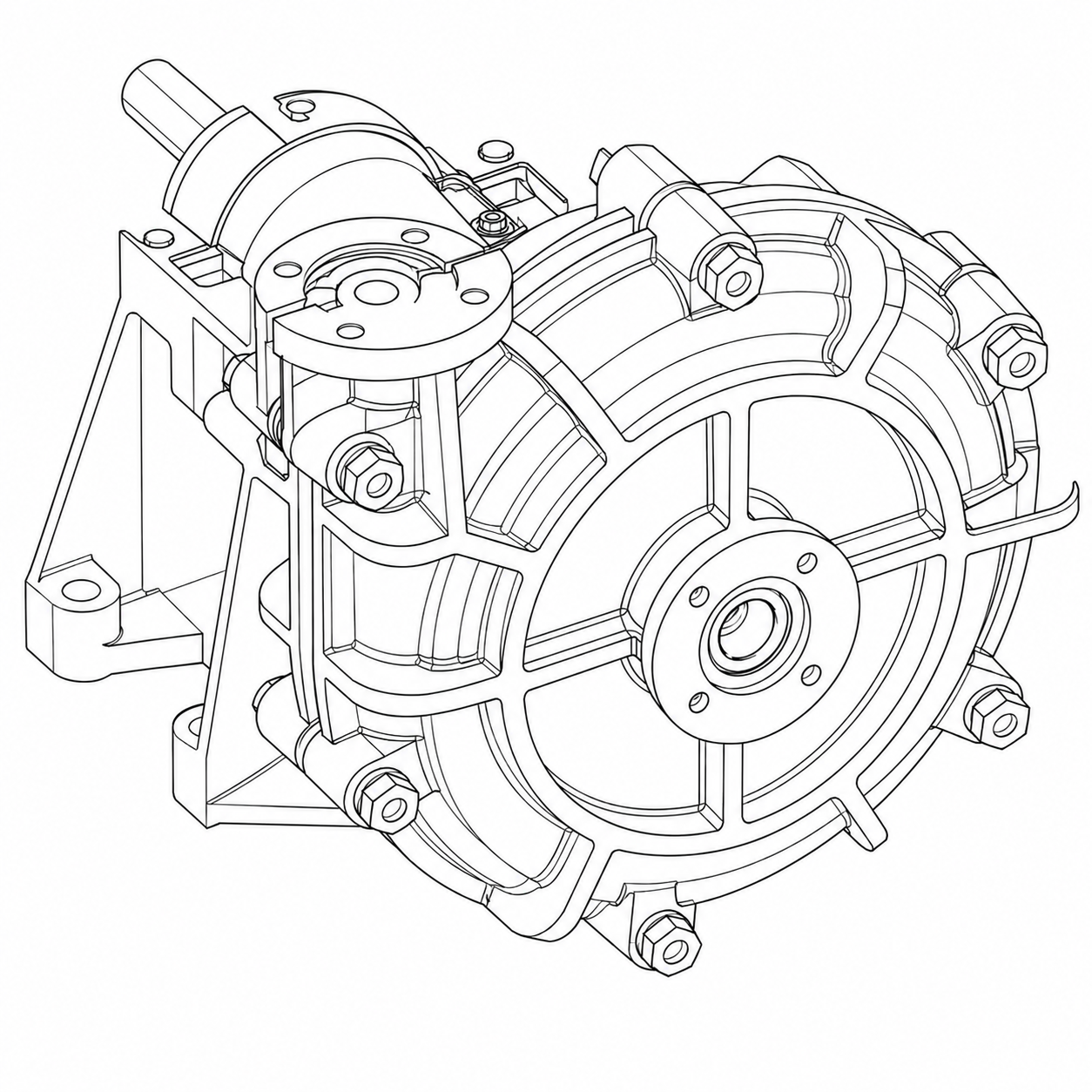

TDH P Series High-Head, Heavy-Duty Slurry Pumps

The TDH P Series Pressure Pump is designed for severe-duty, high-pressure slurry applications. Its rugged, slow-speed construction and abrasion-resistant materials make it suitable for pumping slurries containing high concentrations of erosive solids.

For applications requiring additional pressure, multiple P Series pumps may be installed in series. Pumps are available with several sealing arrangements and material configurations to support demanding industrial and mining environments.

Key capabilities

• Horizontal, centrifugal, single-stage design
• Designed for high-head, severe-duty applications
• Discharge sizes from 1 to 4 inches
• Heads up to 325 feet
• Flow rates up to 4,000 US gallons per minute
• Maximum working pressure up to 500 PSI
• Metal-lined construction
• Temperature capability up to 250°F
• Published pH range from 1 to 14

Available sealing arrangements

• Dynamic seal with no flush water
• Dynamic seal with extremely low flush rate
• Static stuffing box with full flush rate
• Static stuffing box with low flush rate
• Mechanical seal

The dedicated P Series page describes these pumps as extra-tough, abrasion-resistant pumps intended for high-pressure applications and erosive slurries.

Request the correct configuration

Final pump selection depends on flow, pressure, slurry density, particle size, temperature, chemistry and system layout. Contact Tons Per Hour for help selecting the correct P Series model and configuration.
