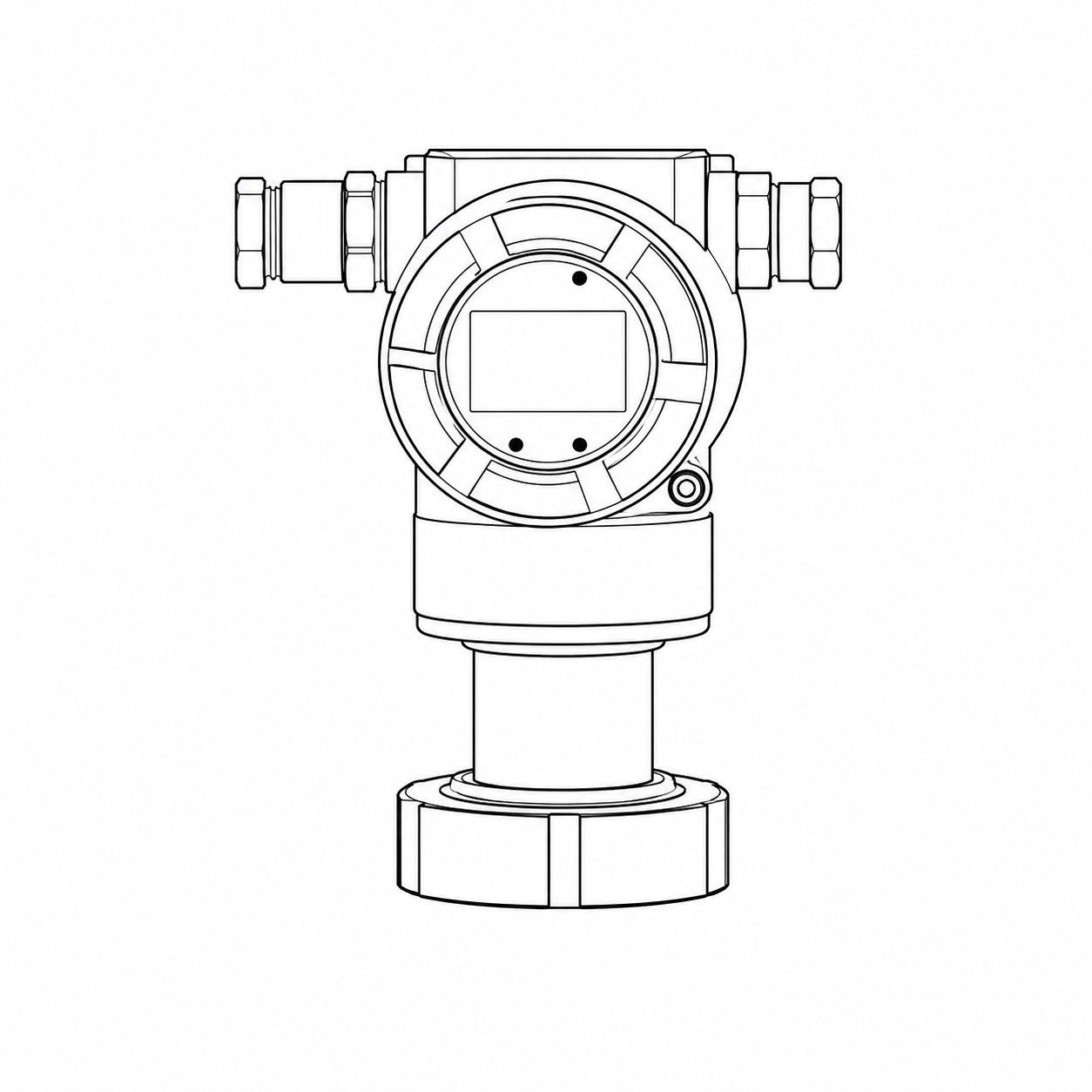

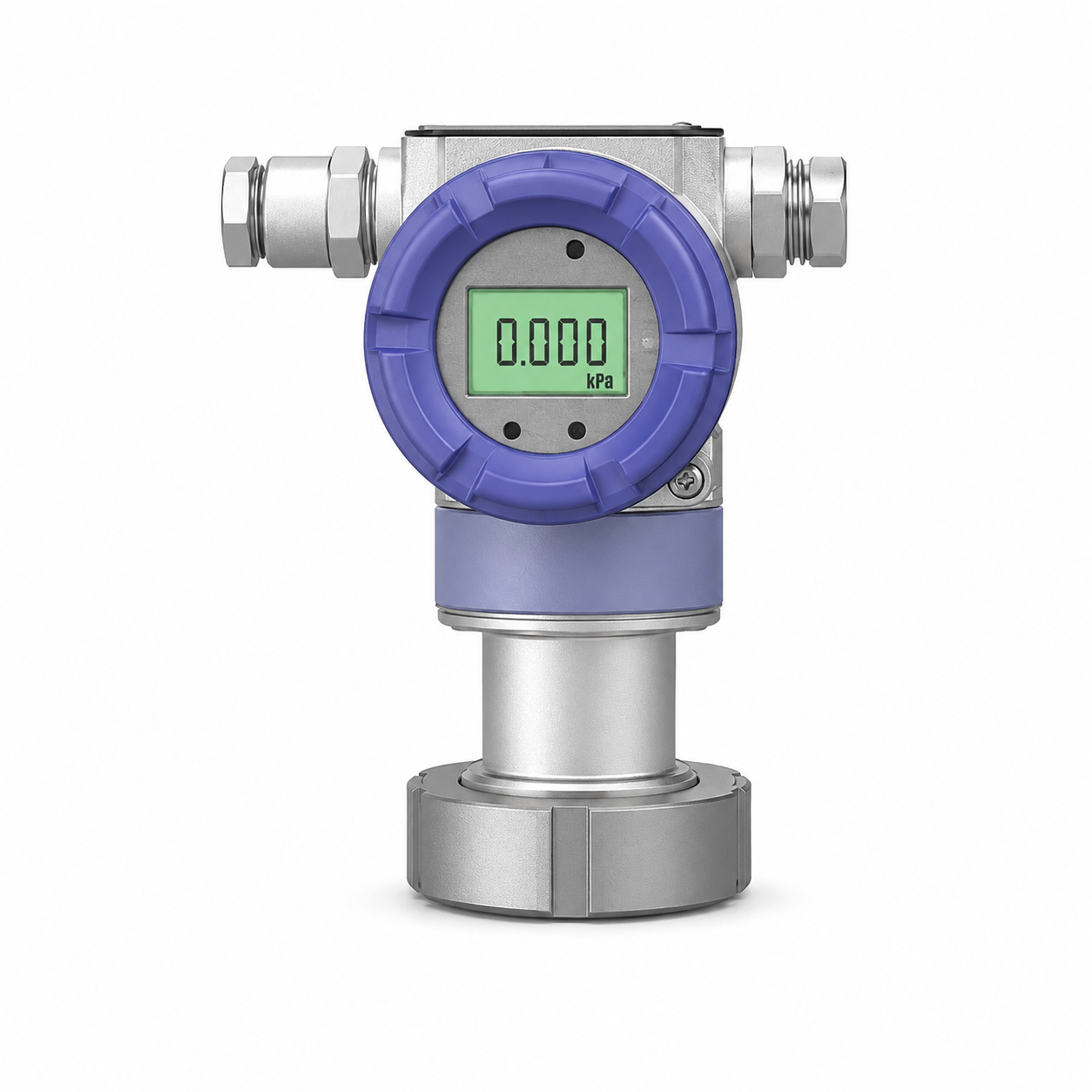

TPH3051S HYGIENIC NUT LEVEL & PRESSURE TRANSMITTER

The TPH3051S provides reliable pressure and liquid-level measurement for industrial process applications.

The transmitter measures process pressure relative to atmospheric pressure. When installed on a tank or vessel, the pressure signal can also be used to determine liquid height. A direct-mounted nut connection attaches the transmitter to the process piping or vessel connection.

Metal capacitive sensing technology and temperature-compensated circuitry help deliver stable measurement across changing operating conditions. The transmitter can be configured with different measurement ranges, output signals, and connection sizes to suit the application.

Key Features

• Measures process pressure and hydrostatic liquid level
• Direct-mounted nut-style process connection
• Metal capacitive pressure-sensing technology
• Linear and temperature-compensated measurement circuit
• High overload resistance
• Accuracy options up to ±0.075%
• Configurable measurement ranges
• 4–20 mA output
• HART and RS485 communication options
• Connection sizes available from DN25 through DN100
• DIN, SMS, and ISO connection configurations listed in the source document
• Suitable for liquid, gas, and steam service
