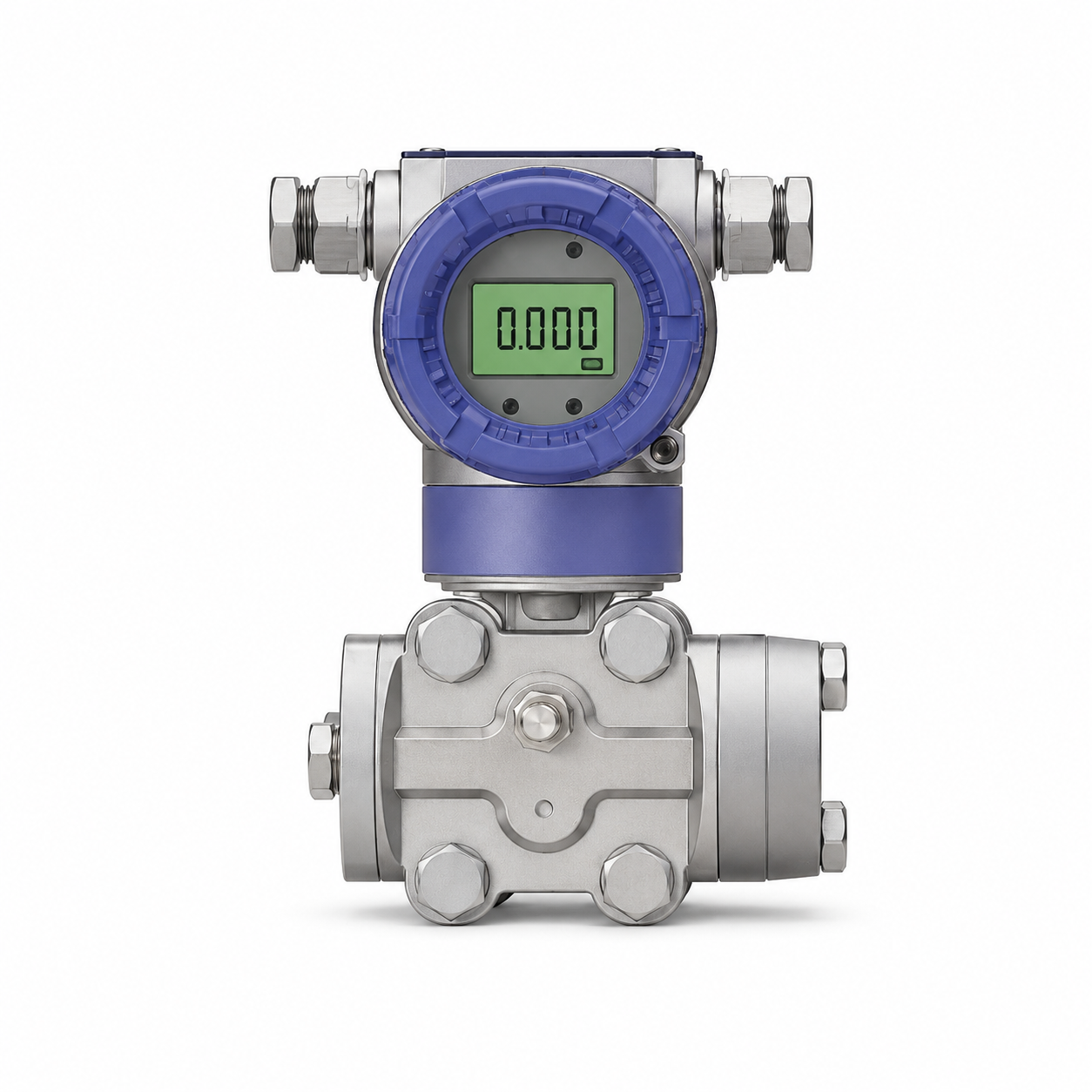

TPH3051GP/GA GAUGE/ABSOLUTE PRESSURE TRANSMITTER

The TPH3051GP/GA Gauge & Absolute Pressure Transmitter is designed for accurate pressure monitoring in demanding industrial systems.

The GP configuration measures gauge pressure relative to atmospheric pressure, while the GA configuration measures absolute pressure relative to a sealed vacuum reference. This allows the same transmitter family to support applications ranging from routine pipeline monitoring to processes requiring a true absolute-pressure reading.

A metal capacitive sensing element detects small changes in the isolation diaphragm and converts them into a stable electrical signal. Integrated linearization and temperature compensation help maintain dependable performance as operating conditions change.

The transmitter supports standard industrial outputs, including 4–20 mA, HART, and RS485. Pressure range, process materials, housing, thread connection, and optional accessories can be selected for the application.

Key Features

• Gauge or absolute pressure configurations
• Suitable for liquid, gas, and steam service
• Metal capacitive pressure-sensing technology
• Linear and temperature-compensated measurement circuit
• High overload resistance
• Accuracy options up to ±0.075%
• Configurable pressure ranges up to approximately 41 MPa, depending on configuration
• 4–20 mA output
• HART and RS485 communication options
• Multiple process connections
• Several diaphragm and wetted-material selections
• Aluminum-alloy or stainless-steel housing options
• Optional digital display and mounting accessories

Contact Tons Per Hour for assistance selecting the correct measurement range, flange size, pressure class, output signal, diaphragm material, and process configuration.
