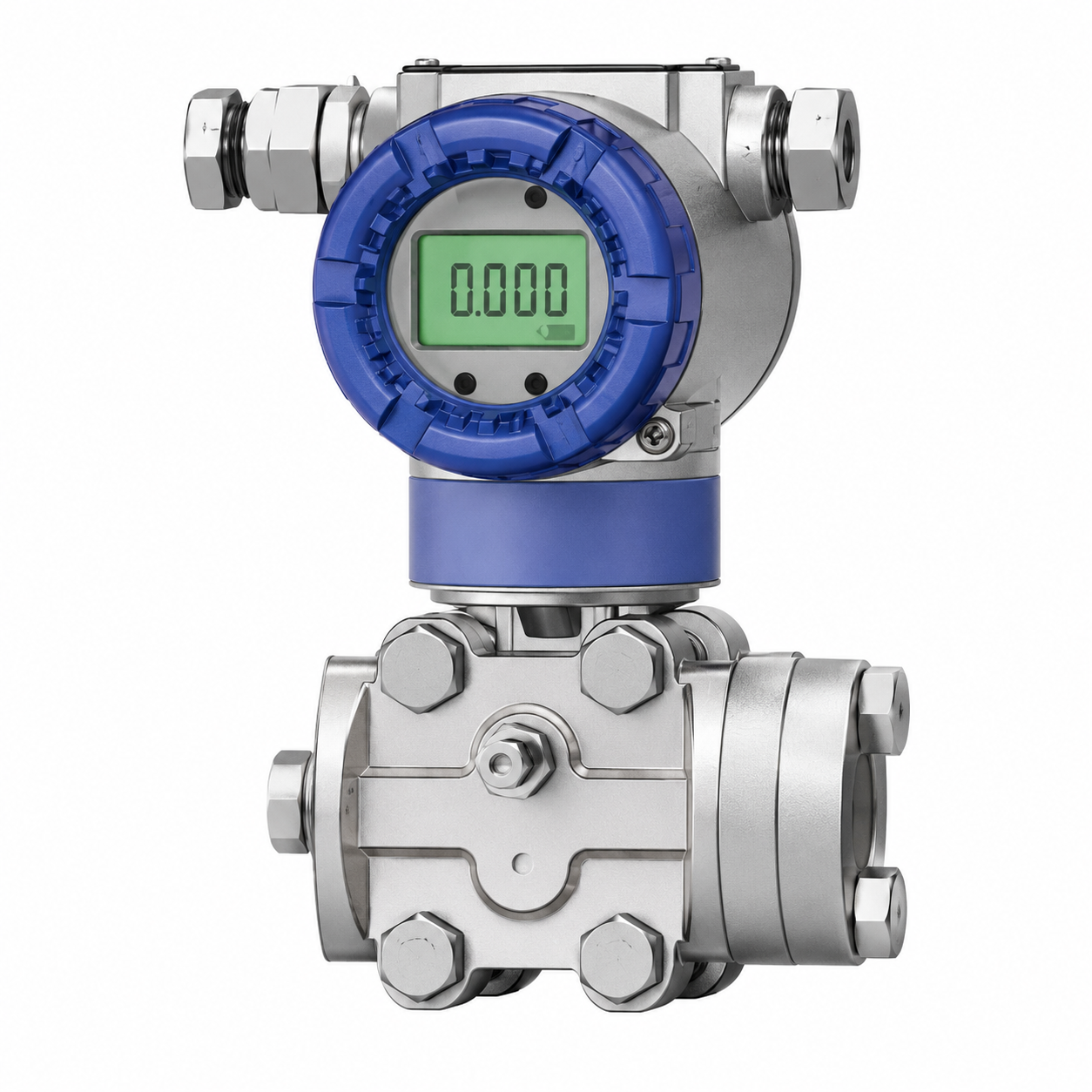

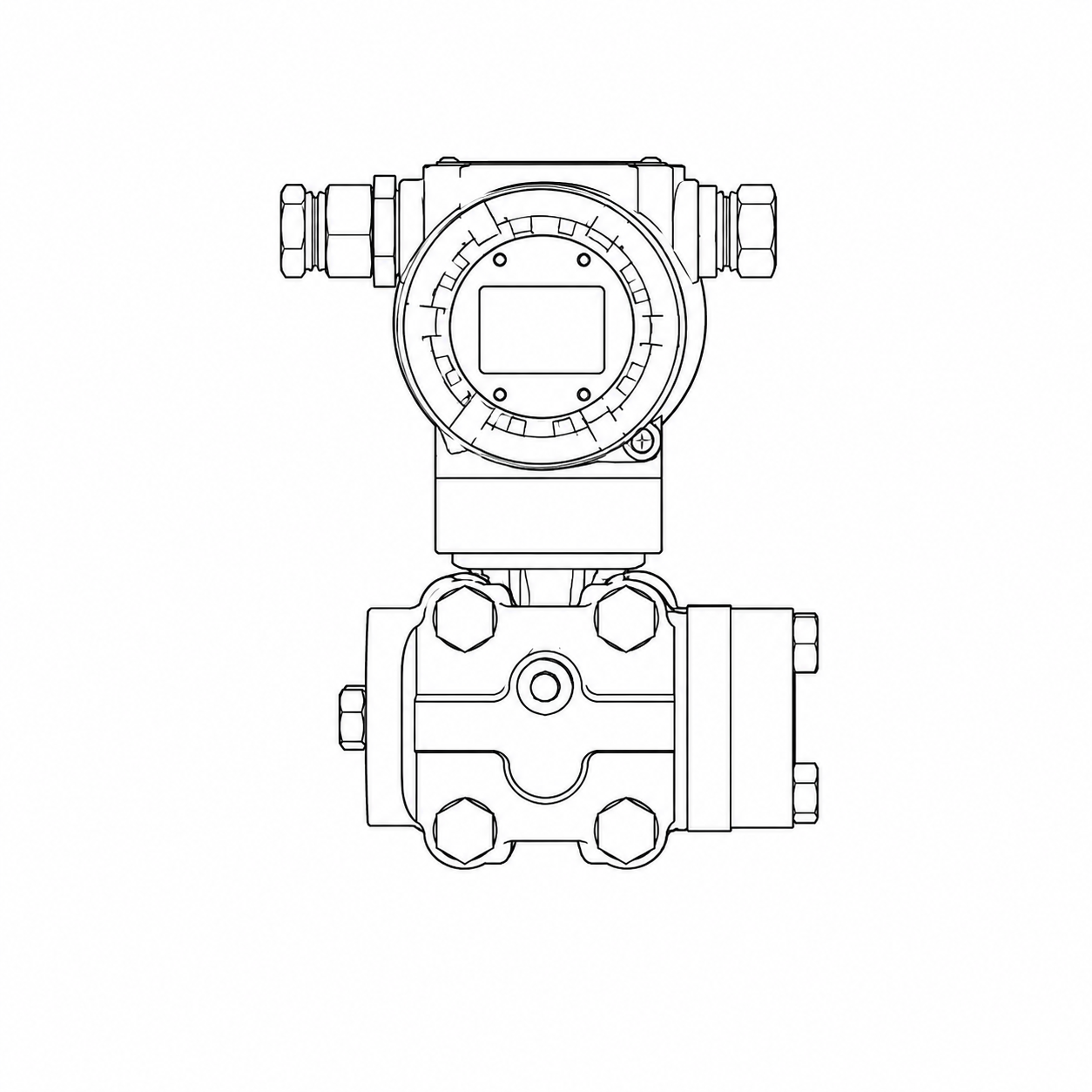

TPH3051DP/HP DIFFERENTIAL PRESSURE TRANSMITTER

The TPH3051DP/HP is a configurable industrial transmitter designed to measure the pressure difference between two process points.

Pressure applied to the transmitter’s isolation diaphragms produces a small movement in the metal capacitive sensing element. The internal measuring circuit converts this movement into a stable output signal, using linearization and temperature compensation to support consistent performance across changing process conditions.

Two configurations are available:

• TPH3051DP: Standard differential-pressure transmitter
• TPH3051HP: High-static differential-pressure transmitter

The transmitter can be configured with multiple measurement ranges, output signals, process connections, housing materials, and wetted-material combinations. Available communication options include standard 4–20 mA, HART, and RS485.

Key Features

• Standard or high-static differential-pressure measurement
• Suitable for liquid, gas, and steam
• Metal capacitive pressure-sensing technology
• Linearized and temperature-compensated output
• High overload resistance
• Accuracy options up to ±0.075%
• Multiple configurable measurement ranges
• 4–20 mA output
• HART and RS485 communication options
• Multiple process-material configurations
• Aluminum-alloy or stainless-steel housing options
• Configurable threaded process connections
• Optional digital display and mounting accessories

Contact Tons Per Hour for assistance selecting the correct measurement range, flange size, pressure class, output signal, diaphragm material, and process configuration.
