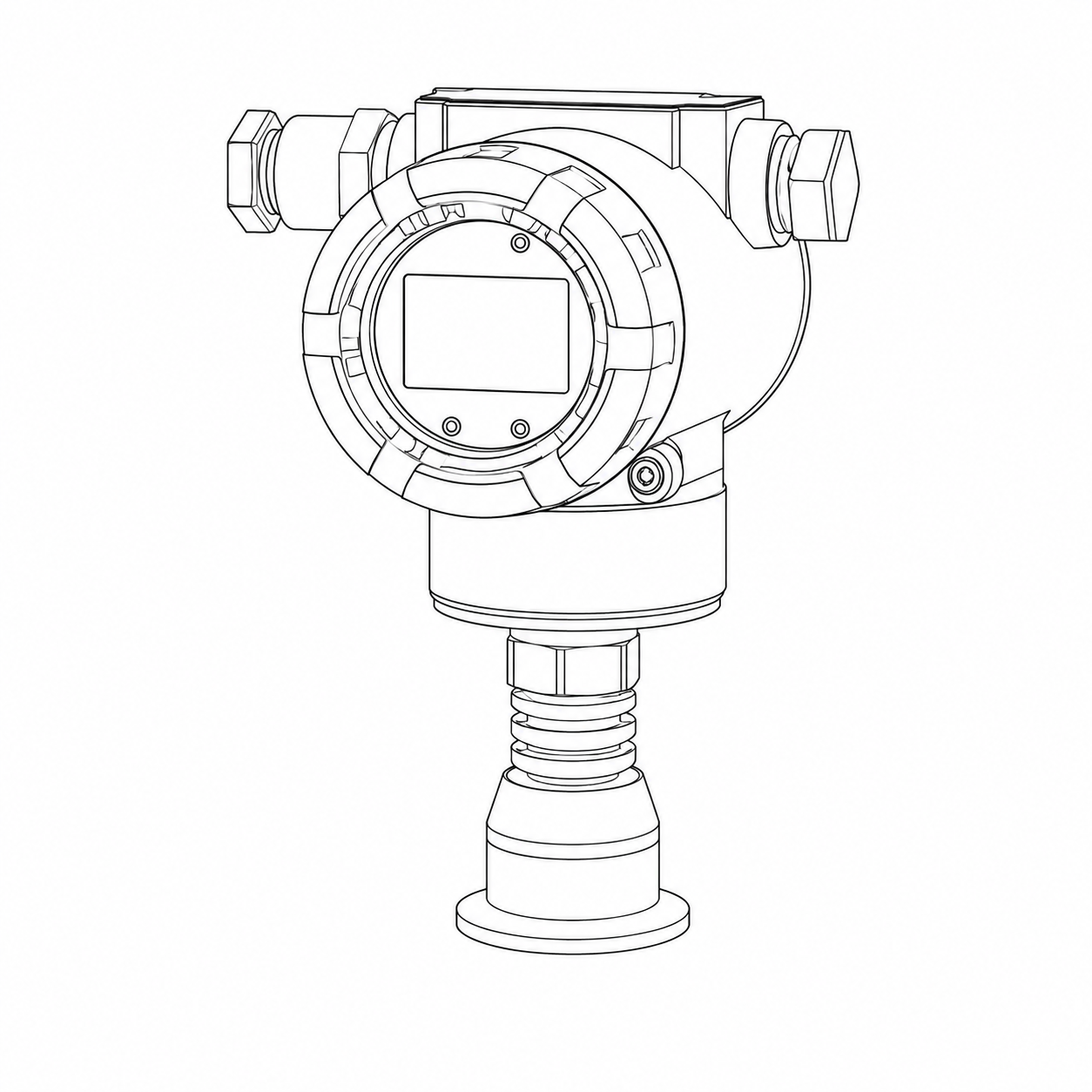

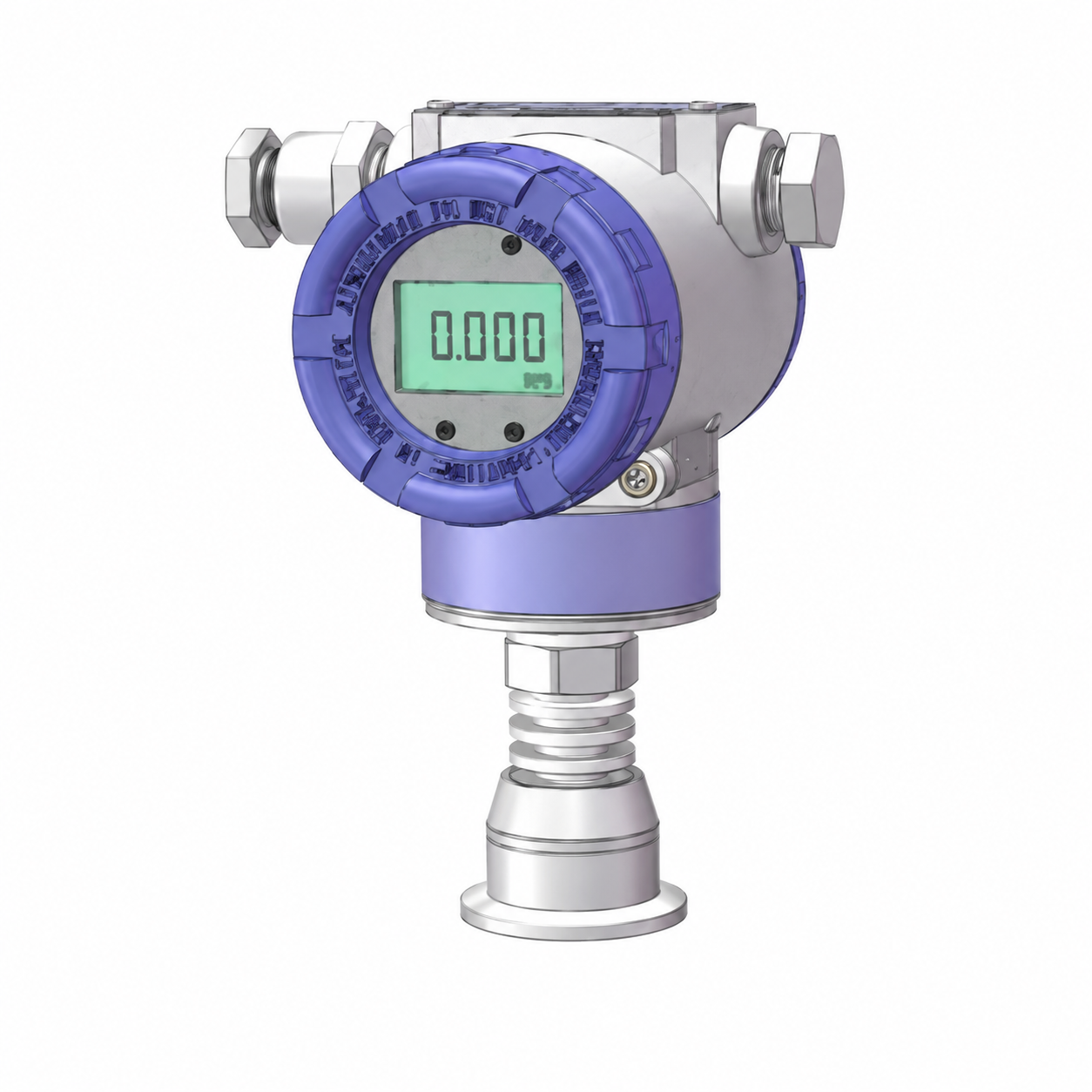

TPH3051C HYGIENIC CLAMP LEVEL & PRESSURE TRANSMITTER

The TPH3051C is a direct-mounted transmitter designed to measure process pressure and liquid level in tanks, vessels, and pipelines.

The transmitter measures pressure relative to atmospheric pressure. In tank applications, that pressure reading can also be used to determine the height of the liquid in the vessel. Its clamp-style process connection creates a flush, easy-to-access interface that is well suited for systems requiring a clean process connection.

A metal capacitive sensing element, temperature-compensated circuitry, and multiple communication options provide stable measurement and easy integration into industrial control systems. Measurement range, output signal, clamp size, and other configuration details can be selected to match the application.

Key Features

• Measures both process pressure and hydrostatic liquid level
• Direct-mounted clamp process connection
• Metal capacitive pressure-sensing technology
• Linear and temperature-compensated measurement circuit
• High overload resistance
• Accuracy options up to ±0.075%
• Configurable measurement ranges
• 4–20 mA output
• HART and RS485 communication options
• Available in 1½-inch, 2-inch, or custom clamp configurations
• Suitable for liquid, gas, and steam service
